Description

	SI	IP
nominal condenser capacity at dTe=15K (2 pass)	107,3 kW	366.0 kBTU/h
Weight	63 kg	139 lb
Total width	1213 mm	47,8”
Total height	377 mm	14,8”
Jacket tube diameter	216 mm	8,5”
Refrigerant inlet	35 mm – 1 3/8”	35 mm – 1 3/8”
Refrigerant outlet	28 mm – 1 1/8”	28 mm – 1 1/8”
Alternative refrigerant outlet	1 3/4” – 12 UNF	1 3/4” – 12 UNF
Coolant inlet (2 passes)	2”	2”
Coolant outlet (2 passes)	2”	2”
Coolant inlet (4 passes)	1 1/4”	1 1/4”
Coolant outlet (4 passes)	1 1/4”	1 1/4”
Receiver volume refrigerant	29,4 dm3	1034,7 fl.oz.
Max. refrigerant charge 90% at 20°C
R22	32,0 kg	70,5 lb
R134a	32,4 kg	71,4 lb
R407C	30,7 kg	67,7 lb
R404A/R507A	28,3 kg	62,4 lb
Max. pressure	33 bar	400 psi
Max. Operating Temperature	120°C	248°F
Max pressure coolant side	10 bar	145 psi
Larger outlet connection	35 mm – 1 3/8”	35 mm – 1 3/8”

	SI	IP
Adapter for pressure relief valve	Option	Option
2 fixing rails (above)	Option	Option
2 fixing rails (below)	Standard	Standard

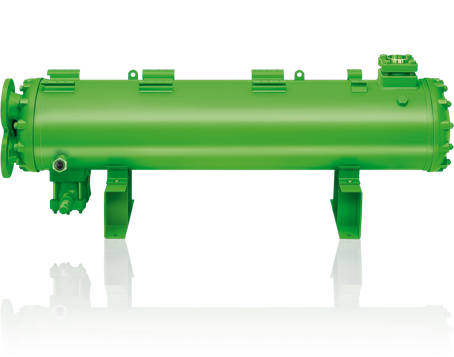

Water Cooled Condenser Bitzer type K0573HB
